Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: Fmuser
  • Model Number: CZH-15A
  • Color: Silver

Packaging & Delivery

Packaging Details cardboard box
Delivery Time 45days

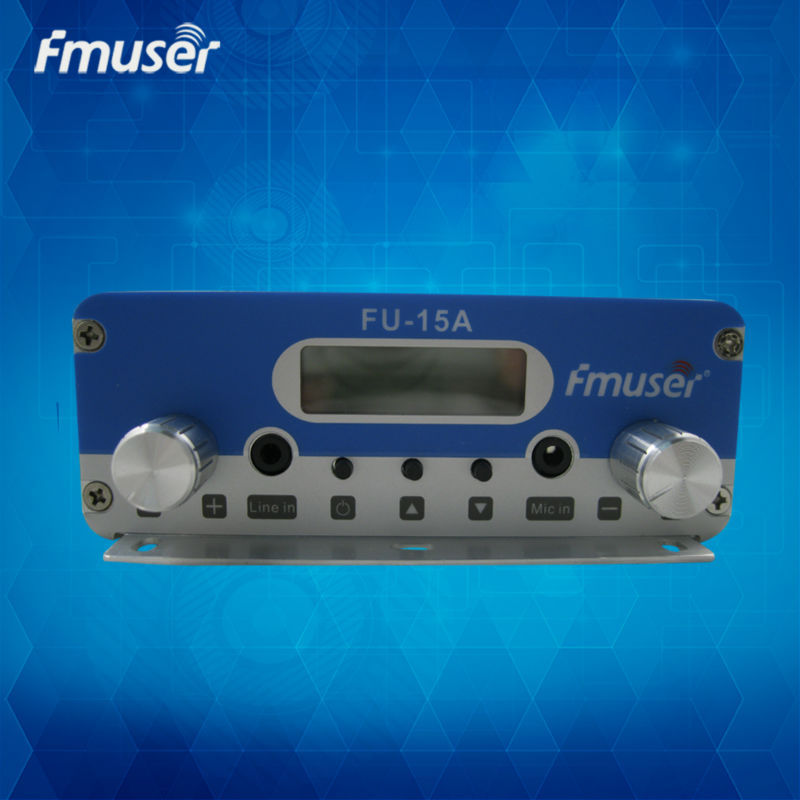

15W Fmuser CZH-15A FM transmitter Silver





Fmuser FM transmitter is a professional grade low power FM transmitter operating in the commercial FM band (88- 108MHz).
It is intended for indoor (churches, theaters, cinemas, auditoriums, conference halls , Hostels, Commercial Plaza ,Shopping Center,Government Building, Sports Center, Fitness Center,Conference) or outdoor (business parkings, tourist attractions, talking signs, Rural radio, Outdoor Advertising ,Outdoor Activities ,Orienteering) short range broadcasting in a variety of applications:  hearing assistance, translation, information, sound re-enforcement.
Its outstanding RF and audio performances, ruggedness, reliability and versatility make FMuser FM transmitter stand out from conventional hearing assistance systems.





• User programmable frequency

• Easily choose your frequency LCD and buttons,No manual tuning required

• Japan Phase Lock Loop (PLL) Technology

• Works with standard FM receivers

• Hi-Fi Steroe audio quality

• Adjustable input level with over modulation indicator

• Stereo 1/4-F audio input connector

• Choice of GP antenna or telescopic antenna

• Temperature protect

• Standing Wave Protect

• 5 years warranty



Technical Specifications


• DC input:2.5:mm

• input voltage:DC12V

• operating current:2500:mA

• Frequency:88~108:MHz

• Modulation:WFM

• Frequency Step:0.1MHz

• Frequency stabilization method:PLL

• deviation:±75KHz

• RF Output:15W

• Output Impedance:50 Ω

• Harmonic radiation:-60db

• Frequency Response:50~15000 Hz

• Distortion:0.2%

• Pre-emphasis delay:50us

• Stereo Separation:40db

• Input level:-15dbV

• Input impedance:50KΩ

• SNR:65 db

• Match the microphone:ECM mic

• Size:197*122*45mm

• Color:Silver

• Weight:0.55kg

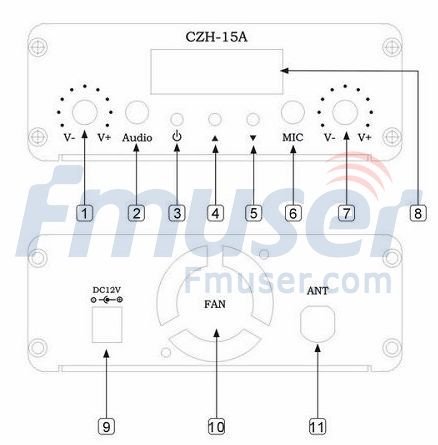

Front and Back panel description



1. AUDIO INPUT LEVEL: controls the audio input level (Tunner)

2. AUDIO INPUT: connect your audio source here (Input level:-15dbv ; Connector:3.5mm)

3. DC POWER SWITCH: turns the transmitter ON or OFF

4. FREQUENCY UP: transmitting frequency UP

5. FREQUENCY DOWN: transmitting frequency DOWN

6. MIC INPUT: connect your Electret condenser microphone here (Connector:3.5mm)

7. MIC INPUT LEVEL: controls the MIC input level (Tunner)

8. FREQUENCY DISPLAY: Displays the programmed transmitting frequency (88.0 – 108.0 MHz)

9. DC INPUT: Connect the DC adaptor (supplied) here (12V 4A)


11.TRANSMITTING Connector:Connect the GP antenna (50Ω BNC)


About Us


FMUSER is a high tech cooperation dedicated in providing solution project designing, technology exploring, manufacturing and marketing of fm transmitters. FMUSER has been in cooperation with plenty of countries overseas manufacturing fm transmitters as per customers’ needs, the business map reached to countries and regions like United States, United Kingdom, Japan and lots of countries from European and Southeast Asia. FMUSER is currently one of the biggest manufacturer of fm transmitters in china.





A list of high schools all over Canada are currently using Decade transmitters to broadcast their own radio programs inside their building. The audio content is FM broadcast inside the school building (no more disco speakers required) and students are receiving the signal with their own portable FM receiver (mp3 player).Private listening of the radio will free the students from noisy environments (cafeteria, public places due mostly to the decibel war caused by the speakers versus students shouting to overpass loud music).

Products list



Permit licenses


In Canada:There is a permit or license required on your particular application using transmitters, so please contact your nearest office Industry Canada to obtain related information.

In the U.S.A: There is a permit or license required on your particular application using transmitters, so please contact your nearest FCC office to obtain related information.
