Quick Details

  • Brand Name: FMUSER
  • Model Number: Fmuser618F-1000W
  • Place of Origin: China (Mainland)
  • Frequency: 87.5-108 MHz
  • Output Power: 1000W
  • Output impedance: 50Ω
  • RF output interface: BNC, RCA
  • Power supply: 110V 220V
  • Size: 720*1950*1200mm
  • Weight: 180KG

Packaging & Delivery

Packaging Details wooden case
Delivery Time 25-45 Days



Do you want to build the fm station?Do you want to resale the transmitter for someone to build the station?
Undoubtedly,we can help you, Please contact Erin Huang.

The Application:

-------------------------------------------------------------

  1. This is the 1000W transmitter cover range 20-30KM if it use with the 4-Bay DV1 antenna outside.It set for the people who want to build the professional fm station . It is widely used on the meeting ,village broadcasting,Speech ,concert .And also schools,supermarkets, factories, railway stations, conferences. You can build your own station easily.
  2. If you are the dealer who want to resale this transmitters in your country.Please contact Erin .We can give you more suggestion.

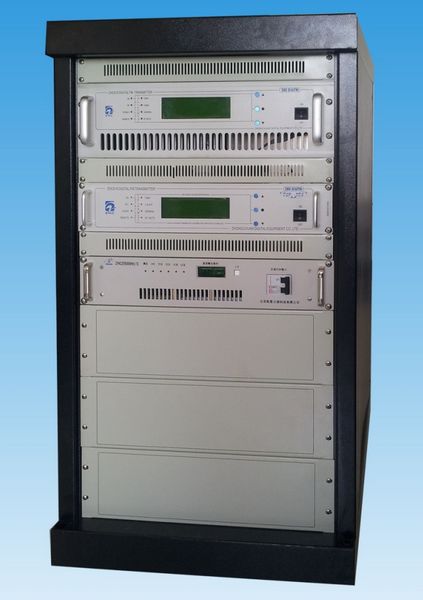

  3. The transmitter uses a simple design philosophy, the incentive 1KW FM stereo transmitter and power amplifier, the output filter, switching power supply installed in a 4U high 19-inch standard chassis, reducing the transmitter between the various components of the ordinary connecting cable, high reliability, easier to operate. wireless cable tv transmitter

Features:

-------------------------------------------------------------------

  • Hearing similar to CD .
  • All-digital technologies DSP+DDS.
  • Built-in audio signal limiter.
  • Analog and digital (AES/EBU) audio signal input directly.
  • AGC circuit can keep the Output Power stability.
  • Big LCD display all the parameters in real time.
  • Communication Interface by RS232 for remote.
  • Five kinds of protections for the security.
  • Compact structure 4U,Stainless steel cabinet. wireless cable tv transmitter

Technical Specifications:

-----------------------------------------------------------------

  • Frequency Range:87.0MHz~108.0MHz
  • Output Power:0~1000W
  • Output power deviation:<± 10%
  • Output power stability:<± 3%
  • Output Load Impedance:50Ω
  • RF Output Interface:7/16"(female) or 7/8"Flange
  • SFDR:< -70dB High Harmonic:< -65dB
  • Residual Amplitude Modulation:< -50dB
  • Carrier Frequency Precision:±200Hz
  • Analog Audio Input:-12dBm~+8dBm
  • Audio Input Level Gain:-15dB~+15dB, step 0.1dB
  • Audio Input Impedance:600Ω, Balance, XLR
  • AES / EBU input impedance:110Ω, Balance, XLR
  • AES / EBU input level:0.2 ~ 10Vpp
  • AES / EBU sample rate:0kHz ~ 96kHz
  • SCA Input:Unbalance (optional) BNC connector
  • Pre-emphasis:0μS, 50μS, 75μS (optional)
  • Audio Response:±0.1dB (30Hz~15000Hz)
  • LR channel level difference:
  • Stereo Separation:≥50dB  30Hz ~ 15000Hz
  • Stereo S/N ratio:≥70dB 1KHz, 100% modulation Distortion
  • Stereo Separation:≥50dB  30Hz ~ 15000Hz
  • Stereo S/N ratio:≥70dB 1KHz, 100% modulation wireless cable tv transmitter

  wireless cable tv transmitter

To know the transmitter:

-----------------------------------------------------------------------------------------------

How far(long) the transmitter cover?

The transmission range depends on many factors. The true distance is based on the antenna installing height , antenna gain,  using environment like building and other obstructions , sensitivity of the receiver, antenna of the receiver . Installing antenna more high and using in the countryside , the distance will much more far.



Below are the approximate range of different power FM Transmitters. ( The range is  radius,The following distance is bassed on the antenna . )

  • 30W TV Transmitter :5kM ~6KM
  • 80W TV Ttransmitter : 6KM ~ 15KM
  • 300~500W TV Transmitter : 10KM ~20KM
  • 1KW FM Transmitter :  15KM ~ 25KM
  • 3KW FM Transmitter : 30KM ~40KM
  • TV-VHF-5KW:with the 4 Bay DV1 antenna:45KM
  • TV-VHF-10KW:with the Slot antenna:80KM
  • TV-UHF-5KW:with the Slot antenna:45KM
  • TV-UHF-10KW:with the Slot antenna:80KM
  • Digital TV 50~100W:10KM~15KM
  • Digital TV 300~500W:25~30KM
  • Digital TV 1KW:40KM  wireless cable tv transmitter

The Application of the transmitter:

--------------------------------------------------------------------------------------------------------







What can I do for you?



  wireless cable tv transmitter

About us:

------------------------------------------------------------------------------------------

We specialized in production and sales of FM / TV Transmitter , FM / TV antenna , the FM / TV transmitter accessories. We have been exporting FM /TV transmitter for 6 years. We have clients all over the world, not only the resellers but also the consumers. With 6 years experience in this field ,we have professional team and excellent aftersales service. We dedicated in supplying the best quality products with competive prices and excellent customer sevice! If you have any question about it , No matter you buy or not, please feel free to tell us your questions,we are very willing to help you and solve your problems. wireless cable tv transmitter

Our factory:

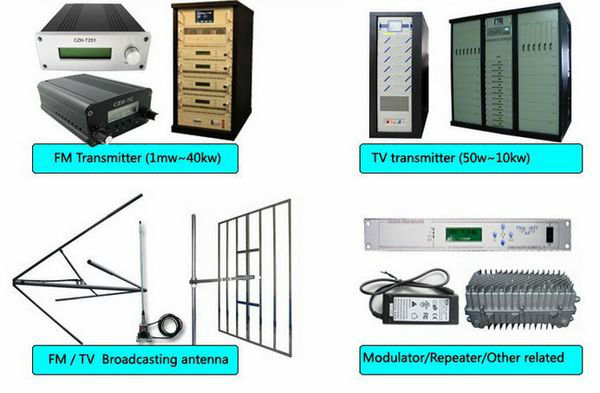

Products list:

-----------------------------------------------------------------------------------------

  wireless cable tv transmitter
We have modernization of the factory . You are welcome to visit our factory when you come to China.



At present , there are already 1095 customers around the world visited our Guangzhou Tianhe office .  If you come to China , you are welcome to visit us . wireless cable tv transmitter





If you want to come to my office,please contact:



Erin Huang

Tel:+86-2-87597795      +86-2-87588285

Cellphone:+86 15800205544

Skype:Erin-huang2



At Fair

This is our participation in 2012 Global Sources Hong Kong Electronics Fair . Customers from all over the world finally have a chance to get together.





How to find our Guangzhou Office:

-----------------------------------------------------------------------------------------

  wireless cable tv transmitter

You can search this numbers "Fmuser " in google map , then you can find our fmuser office .



FMUSER Guangzhou office is in Tianhe District which is thecenter of the Canton . Very near to the Canton Fair , guangzhou railway stationxiaobei road and dashatou , only need 10 minutes if take TAXI . Welcome friends around the world to visit and negotiate .universal fm transmitter
