RDS-C Encoder for Fm transmitter with MPX SCA

FOB Reference Price:Get Latest Price
$1,600.00 - $2,500.00 / Set | 1 Set/Sets (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
FMUSER
Model Number:
FMUSER RDS-1
RDS Signal:
Compliant with the EBU document
RDS signal subcarrier frequency:
57kHz
Sampling rate:
361kHz
Bandwidth:
± 2.4kHz (50dBc)
Recommended FM deviation:
6.8kHz
Pilot PLL 57/19KHz capture range:
8Hz
Stereo pilot frequency required:
19000Hz ± 2Hz
Pilot tone level:
min. 120mVpp (-26dBu)
Phase shift adjust MPX transmission:
Full range, in 9.5 deg. Steps
Power consumption:
20VA
Supply Ability
Supply Ability:
1000 Set/Sets per Month
Packaging & Delivery
Packaging Details
Dimensions:200*110*100mm (W x D xH)
Approx weight:2Kg
Neutral Pack
Port
Guangzhou
Lead Time :
7-15days



Contact Us

Please contact the following staff for instant help with product user manual, datasheet and updated wholesale price.

Email: hch(at)cantonmade.com

Skype: erin-huang2

Wechat: +86 15800205544

Whatsapp: +86 15800205544

Tel:+86 15800205544 (Monday~Friday: 9:00 ~ 18:00 (+8 China ) )

Working Time

09:00--18:00 Beijing
17:00--2:00 San Francisco

19:00--4:00 New York

21:00--6:00 Paris

04:00--13:00 Moscow

12:00--21:00 Sydney

02:00--11:00am Congo ( Africa )



Quality  Control



2015429_2015-04-20_1710561



OEM Order Welcomed





RDS-C Encoder for Fm transmitter with MPX SCA

R: V20150708-10-31 Data sheet   User Manual





RDS-C Encoder for Fm transmitter with MPX SCA



FMUSER RDS-C ENCODER for

Fm Transmitter with MPX SCA

1

Overview


The FMUSER RDS-C Encoder offers the most popular RDS functions at an exceptional Price/Quality ratio. Delivered with a quick-start and a connection diagram, the RDS-C Encoder is easy to install and has a user-friendly interface (useable by non technical staff).

The radio data system not only gives your listeners an interactive and informative addition to your stations audio content, it also opens up revenue generation possibilities.

Whether you wish to display your station’s name on your listeners radios, stream out artist and title data or use the RDS data channel for your own in house data applications you’ll be able to do it with a FMUSER RDS-C encoder.

Features

--The RDS encoders can work alone

--Direct digital RDS signal synthesis

--Effective design based on high-performance single microcomputer, low power consumption

--Compatible essentially with all FM broadcast transmitters

--Setup is provided easily by a PC computer; "Now Playing" features,Presets, Task Scheduler, Settings lock

--Powerful control software with advanced facilities, free download, on-line documentation

--RDS services supported: PI, PS, PTY, PTYN, TP, AF, TA, DI, M/S, PIN, ECC, LIC, RT, TDC, IH, ODA, CT, EON, RT+

--Easy RDS settings wizard, including automatic PI calculation

--Complete solution for your radio station: RDS Scheduling, External text sources,

--Up to 16 dynamic external text sources

--Powerful text processing tools

--External text source can control any RDS service (for example TA and PTY)

--Software OS supported: Windows 9x, ME, NT, 2000, XP, Vista, win7, win8



Technical Specifications


RDS Signal

Compliant with the EBU document tech 3244 (3/1984) and suppl. nr.1 (3/1987), and CENELEC EN 50067

RDS Services directly supported

PI, PS, PTY, TP, AF, TA, DI, M/S, PIN, RT, RT+TMC, EON, PTYN,ECC, LIC, TDC, IH, CT, ODA

RDS signal subcarrier frequency

57kHz

Sampling rate

361kHz

Bandwidth

± 2.4kHz (50dBc)

Recommended FM deviation

6.8kHz

Pilot PLL 57/19KHz capture range

8Hz

Stereo pilot frequency required

19000Hz ± 2Hz

Pilot tone level

min. 120mVpp (-26dBu)

Phase shift adjust MPX transmission

Full range, in 9.5 deg. Steps

Output level adjust default

0 - 1.4Vpp

Output impedance

< 30Ohm

Audio/MPX/Pilot input

< 10KOhm

Pass-through voltage gain

2Hz - 100kHz (0,01dB)

Signal connectors

unbalanced BNC-female

Data connector

RS-232 (DTE, 9 pins), bi-directional

Communication speed

software selectable 1200, 2400, 4800, 9600, 19200bps

Communication mode

1 stop bit, 8 data bits, no parity, ASCII or UECP

TA switching

by software or external switch

Program switching

by software or external switch

Expansion bus type

IIC, 400kHz

Mains

110-220Vac ±15% 50÷60Hz

Power consumption

20VA

Temp. operation

0°C÷ +40°C

Relative air humidity

90% non condensing

Dimensions:

19”, 1U, 320mm depth

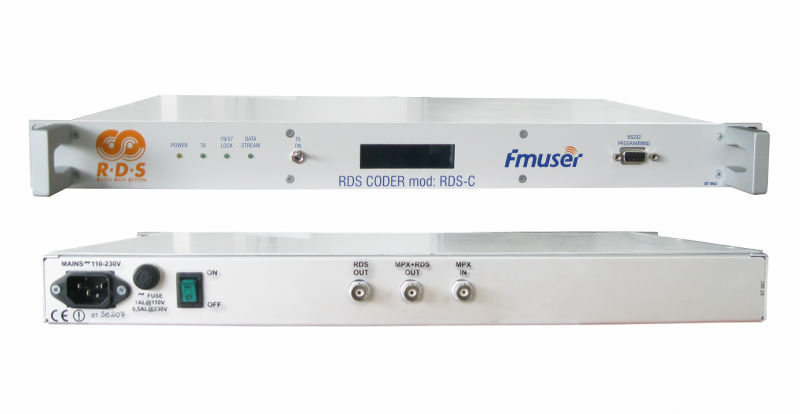

Appearance and Illustration

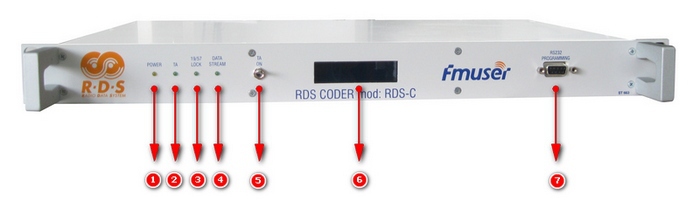

Front Panel Illustration:

3


1.Poewr LED

2.TA LED

3.Pilot tone indication / Firmware update

4.Operation / Receive data / Error

5.External TA/EON1TA switch

6.Screen display

7.RS-232 Interface



9pin D-SUB male (DTE) connector:



1:Not used / +5 V



2:Receive Data (RDS encoder)



3:Transmit Data (RDS encoder)



4:Connected to pin 6



5:Ground



6:Connected to pin 4



7:Connected to pin 8



8:Connected to pin 7

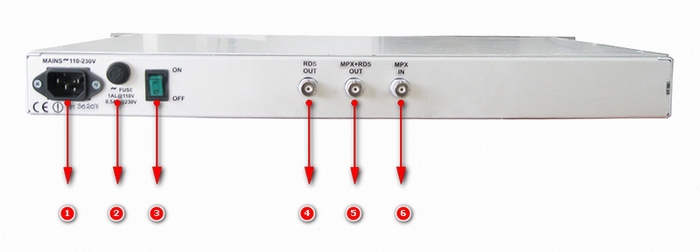

Rear Panel Illustration:

4

1.AC 110V-230V Power Input

2.FUSE

3.Power Switch

4.RDSOUT

5.MPX+RDSOUT

6.Pilot or MPXInput

Windows RDS control software System

5

The software can run in demo mode without the RDS encoder connected.

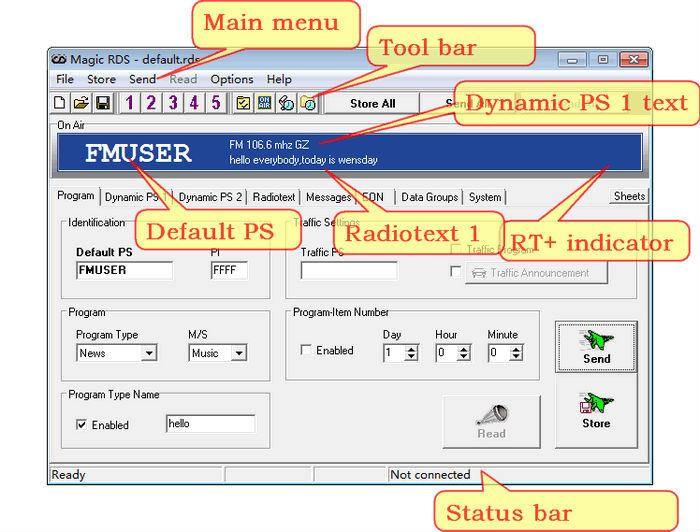

Magic RDS 3 - default Windows control software

Download the Software here:

http://a.fmuser.com/upLoad/product/month_1507/20150702112154software-of-FMUSER-RDS-C-encoder.rar

Note: The RDS encoder contains two types of memory. These are marked as RAM and EEPROM. Like any other computing system the RAM holds all operational data which are also used for transmission whilst the EEPROM is used for the data storage during power-off. By default the button Send will fill the RAM only. The button Store will fill the RAM and also stores the data into EEPROM. The Store button behavior can be changed in Options - Preferences - Buttons.



If the user forgets to store the data into EEPROM, the settings will be lost when the power is disconnected.





FM Transmitter Connection


Basic rules:

The RDS signal must be fed into modulation signal (added to MPX signal if stereo encoder is used).

If stereo encoder is used, one of its outputs (MPX or pilot tone) must be fed into the RDS encoder input to meet the synchronization requirement.

Following figures show various situations and corresponding methods of connection:



6

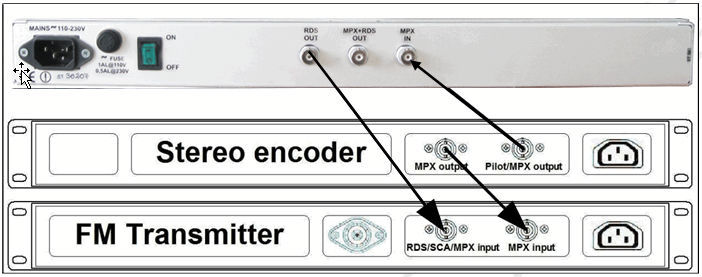

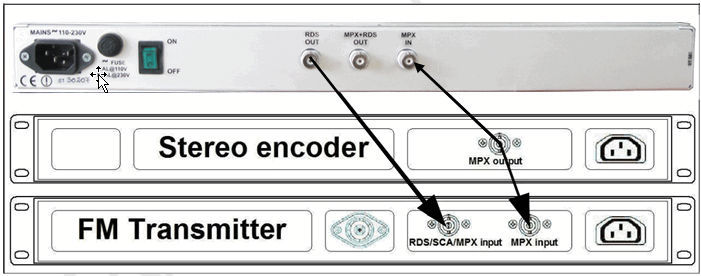

Separate stereo encoder - default connection:

7

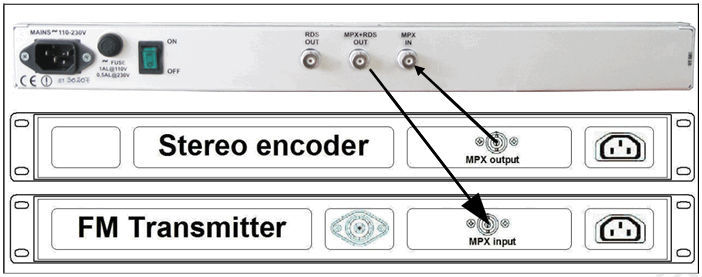

Stereo encoder with only one MPX output provided:



8

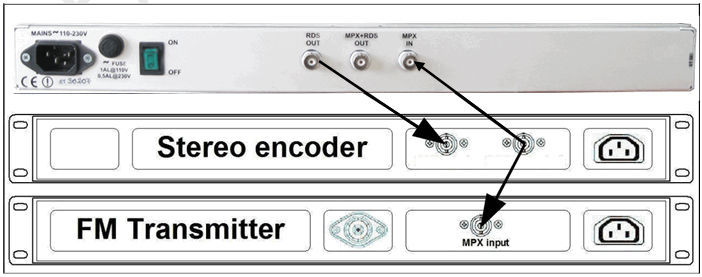

Both stereo encoder and FM transmitter with only one MPX connector provided - loopthrough mode. It is recommended not to use this mode if any of the other connections are possible.



9

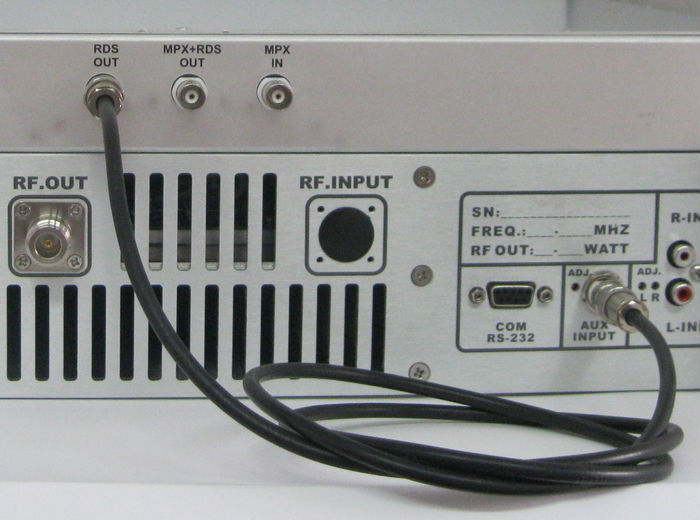

FM transmitter with integrated stereo encoder.


10





FM transmitter with integrated stereo encoder, Only have a AUX in / RDS in / SCA in .

In case of mono transmission (no stereo encoder used) the RDS encoder input may be left unconnected (since there is no need of external synchronization) or it may be used for the audio signal injection in the case that the FM transmitter has only one input connector.



12

Packing List


1pcs FMUSER RDS-C Encoder

1pcs User’s manual

1pcs BNC cable

1pcs RS-232 cable

1pcs Power Cable




download software for RDS-C Encoder Click Here

http://a.fmuser.com/upLoad/product/month_1507/20150702112154software-of-FMUSER-RDS-C-encoder.rar
