FU-X01A 1W FM Transmitter Standard Configuration Upgraded 1 watt FM radio broadcaster User-friendly and Easy Operating

FOB Reference Price:Get Latest Price
$105.00 - $126.00 / Pieces | 1 Piece/Pieces (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Brand Name:
FMUSER
Model Number:
FU-X01A
Place of Origin:
Guangdong, China
Working Frequency:
76~108MHZ
Frequency stepping:
100KHZ, 0.1MHZ
100KHZ, 0.1MHZ:
+-75KHZ
RF Power:
0-1W, 11 levels adjustable
Harmonic and clatter:
<=-60dB
SNO Rate:
>=60dB
RF output:
TNC-K, 50 Ohm
Work voltage:
12V
Work current:
<0.4A (At Maximum power mode)
<0.4A (At Maximum power mode):
162*120*40MM
Supply Ability
Supply Ability:
1000 Set/Sets per Month
Packaging & Delivery
Packaging Details
wooden case
Port
Guangzhou
Lead Time :
3-7Days



FU-X01A 1W FM Transmitter Standard Configuration Upgraded 1 watt FM radio broadcaster User-friendly and Easy Operating

R: V20160125-18-10 Data sheet





Outline


FU-X01A Fm transmitter design for home use, it is easy to change Worldwide band frequency 76-108mhz. Audio pre-emphasis is adjustable between 50US(EURO) / 75US(USA). The RF power can be tune 0-11 steps and control the cover range. When the audio is no input, it will auto power off to save the energy. All the setting will be saved for next time power on.





Key Features


User-friendly and easy operating
Auto power of when no audio in
RCA and 3.5mm audio line in
Microphone input volume will be tuned up in priority when there is an input, the main volume will be tuned down automatically.
Worldwide band 76~108Mhz for any country, easy to setup and change
RF output power is adjustable from 0~1w by 11 levels. Level 0 means no power is transmitted out.
Audio pre-emphasis is adjustable between 50US(EURO) / 75US(USA)
Mono and stereo switchable
Broadcast distance: 0-1km adjustable(The distance is estimated in open environment and just for reference)
Current settings will be memorized, it automatically starts from the previous settings when the transmitter is turned on again.
The size of product is 163mm(height)*120mm(width)*38mm(depth).
The weight of product is 0.3kg.


Appearance and Illustration

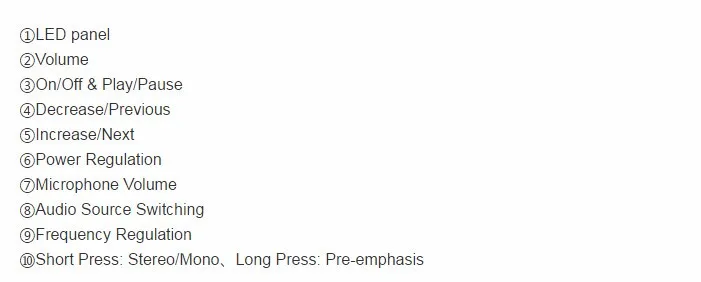

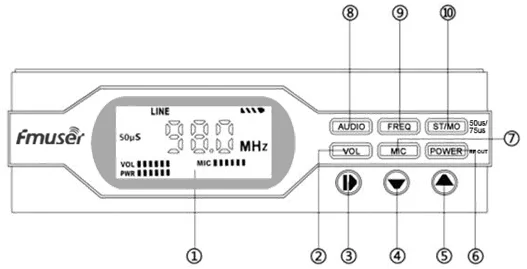

Front Panel Illustration

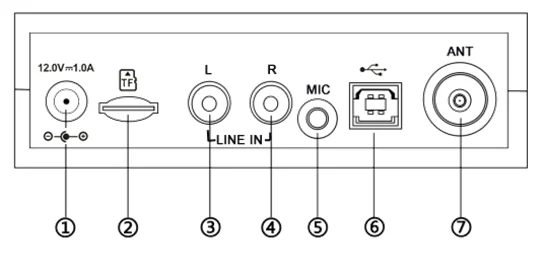

Rear Panel Illustration




LCD Panel








Specifications

RF Parameters


Frequency range: 76~108MHZ (frequency band may customized when MOQ is over 100pcs)
Frequency stepping: 100KHZ, 0.1MHZ
Frequency deviation: +-75KHZ
RF Power: 0-1W, 11 levels adjustable.
Harmonic and clatter: <=-60dB
SNO Rate: >=60dB
RF output: TNC-K, 50 Ohm

Audio Parameters


Audio input: analog audio 3.5mm in, RCA in
Mic input: 3.5mm in
Audio Input Channel: Line in (3.5mm/RCA), TF Card MP3, Bluetooth
Audio input level: 15dBV
Audio distortion: <=0.2%
Audio frequency response: 50HZ~15000HZ
Stereo separation: >=40dB
Pre-emphasis: 50US/ 75US switchable
Audio control: electronic volume control, 11 levels adjustable from 0~10, level 0 means no volume output.
MIC control: electronic volume control, 11 levels adjustable from 0~10, level 0 means no volume output.

Other Parameters


Work voltage: 12V
Work current: <0.4A (At Maximum power mode)
Work temperature: -10~45
Product dimension: 162*120*40MM





Principle Chart

Order Information





SKU

Configuration

Advanced Module

(MP3+Bluetooth+battery module)

TF Card

Battery

Accessories(Short Antenna, Power Supply, USB Cable, Audio Cable)

FU-X01A

Standard



FU-X01B

Intermediate



FU-X01BK

Intermediate



FU-X01C

High-grade



FU-X01CK

High-grade







Package List



FM Transmitter   1pcs

Packing Box  1pcs
